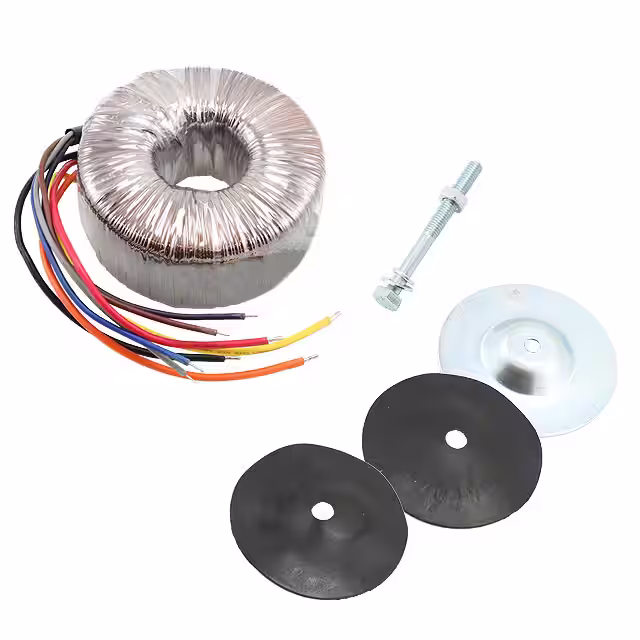

VPT24-6670
VPT24-6670
- Available: 0
- Manufacturer: Triad Magnetics
- Part Number: VPT24-6670
- Detailed Description: PWR XFMR TORO 160VA CHAS MT
- Category: Transformers | Power Transformers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$61.5360
10+
$57.8438
100+
$54.7670
1000+
$51.6902
10000+
$48.6134
Considering price fluctuations, this price is only for reference. Please send RFQ to [email protected] to get the best price, thank you.
Product Specifications
| Manufacturer | Triad Magnetics |
|---|---|
| Series | Chassis Mount: World Series™ |
| Package | Box |
| Standard Package | 1 |
| Product Status | Active |
| Type | Toroidal |
| Voltage - Primary | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V |
| Current - Output (Max) | Parallel 13.34A, Series 6.67A |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Center Tap | No |
| Power - Max | 160VA |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Size / Dimension | 103.00mm Dia x 48.00mm W |
| Height - Seated (Max) | 52.0mm |
| Voltage - Isolation | 4000Vrms |
| Weight | 3.6 lbs (1.6 kg) |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.4065 |
