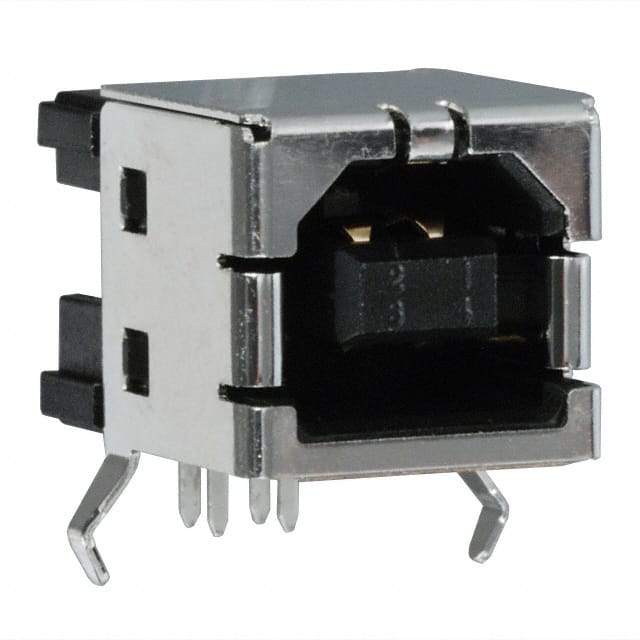

292304-1
292304-1
- Available: 10000
- Manufacturer: TE Connectivity AMP Connectors
- Part Number: 292304-1
- Detailed Description: USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
- Category: Connectors, Interconnects | USB, DVI, HDMI Connector Assemblies
- RoHS Status： RoHS Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.2160
10+
$3.0230
100+
$2.8622
1000+
$2.7014
10000+
$2.5406
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TE Connectivity AMP Connectors |
|---|---|
| Series | - |
| Package | Tray |
| Standard Package | 100 |
| Product Status | Active |
| Connector Type | USB-B (USB TYPE-B) |
| Number of Contacts | 4 |
| Gender | Receptacle |
| Specifications | USB 2.0 |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | Board Lock |
| Ingress Protection | - |
| Operating Temperature | -55°C ~ 85°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 1A per Contact |
| Voltage - Rated | 30VAC |
| Mating Cycles | 1500 |
| Shielding | Shielded |
| Contact Finish | Gold or Gold-Palladium |
| Shell/Shielding Material | Copper Alloy |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | 292304 |
Environmental & Export
| RoHS Status | RoHS Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
