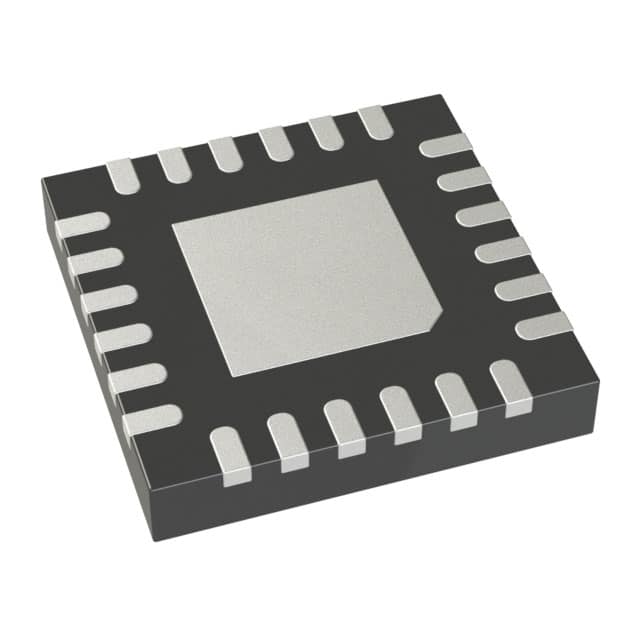

AD8146ACPZ-R7
AD8146ACPZ-R7
- Available: 500
- Manufacturer: Analog Devices Inc.
- Part Number: AD8146ACPZ-R7
- Detailed Description: Video Amp 3 Differential 24-LFCSP-WQ (4x4)
- Category: Integrated Circuits (ICs) | Linear - Amplifiers - Video Amps and Modules
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$10.9560
10+
$10.2986
100+
$9.7508
1000+
$9.2030
10000+
$8.6552
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Analog Devices Inc. |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) | Cut Tape (CT) |
| Standard Package | 1500 |
| Product Status | Active |
| Applications | Differential |
| Output Type | Differential |
| Number of Circuits | 3 |
| -3db Bandwidth | 900 MHz |
| Slew Rate | 3000V/µs |
| Current - Supply | 57 mA |
| Current - Output / Channel | 87 mA |
| Voltage - Supply, Single/Dual (±) | 4.5V ~ 11V, ±2.25V ~ 5.5V |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP-WQ (4x4) |
| Base Product Number | AD8146 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
