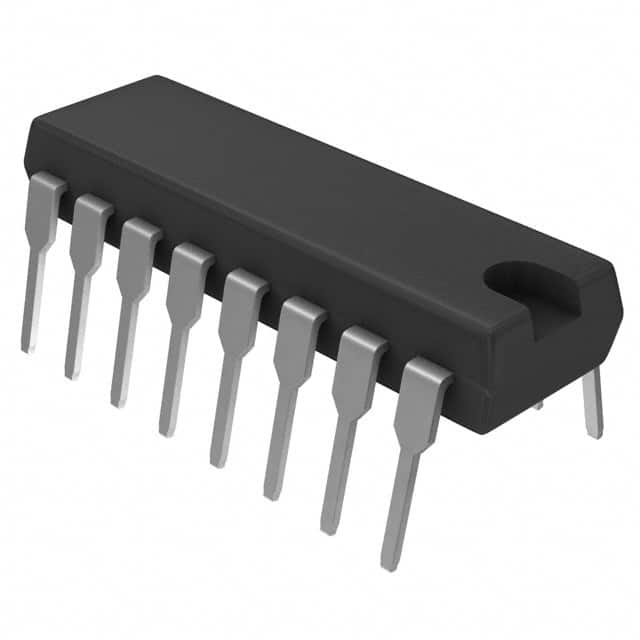

DG508ACJ+
DG508ACJ+
- Available: 75
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Part Number: DG508ACJ+
- Detailed Description: 1 Circuit IC Switch 8:1 450Ohm 16-PDIP
- Category: Integrated Circuits (ICs) | Interface - Analog Switches, Multiplexers, Demultiplexers
- RoHS Status： ROHS3 Compliant
- Datasheet: Datasheet
Reference Price (USD)
1+
$16.9320
10+
$15.9161
100+
$15.0695
1000+
$14.2229
10000+
$13.3763
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Analog Devices Inc./Maxim Integrated |
|---|---|
| Series | - |
| Package | - |
| Standard Package | 25 |
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 27Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 1.5µs | 1µs |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF | 25pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300" | 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | DG508 |
Environmental & Export
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
